PATELLA. Anatomy of the patella. The patella, or kneepan, patella, is a flat, rounded bone embedded as a sesamoid bone in the tendon of the quadriceps muscle in front of the lower end of the femur. The anterior surface of the patella is convex, rough, with many vascular foramina, and covered with periosteum; the posterior surface of the patella, the articular surface (facies articularis), is for the most part covered with cartilage and divided by a low ridge into two unequal facets—a larger lateral and a smaller medial; the upper end of the kneepan, the base (basis patellae), is broad and slightly sloping from above downwards and from behind forwards; the tendon of the quadriceps muscle of the thigh attaches to this end; the lower end of the kneepan, the apex (apex patellae), is slightly elongated; the patellar ligament (ligamentum patellae) attaches to it; the two margins of the kneepan, lateral and medial, are slightly pointed; the lower bundles of the broad muscles of the thigh attach to them. When the leg is straightened at the knee, the patella is located on the articular surface of the femoral condyles, on the so-called facies patellaris; during flexion, the patella descends downwards and somewhat backwards, positioning itself in front of the intercondylar fossa (Figs. 1–6). The patella belongs to the class of short bones and, like all such bones, consists in the center of spongy bone covered at the periphery by compact bone, which is thicker on the anterior surface than on the posterior. The patella develops as a short bone: up to two years of age, the patella represents only a cartilaginous nucleus; by two years (sometimes earlier, by one year, or sometimes later—by 3–5 years), a center of ossification appears in its thickness, growing in all directions, but nevertheless faster backwards; ossification of the patella is completed by 15 and even 20 years (Testut). The patella receives blood from the arterial network of the knee, namely from its anterior part, from the so-called prepatellar circle (cercle artériel prérotulien, Testut), formed from 4 articular branches of the popliteal artery (a. poplitea), from the superior genicular artery (a. genu superior), and the recurrent branch of the anterior tibial artery (a. tibialis anterior). The nerves of the patella are received in the form of branches of the saphenous nerves and sympathetic branches arriving together with the arteries. Pathology of the patella. Congenital anomalies of the patellar apparatus—see Knee joint; an increase in the number of patellae (patella bipartita), described by Gruber, occurs in rare cases, even bilaterally; Petty describes a case where there were two patellae on each leg, located one above the other; each pair was subsequently sutured into a single bone with a good functional result. Fracture of the patella is not frequent (1–2% of all fractures) and occurs almost exclusively at the age of over 30 years; fractures of the patella are not seen in children, probably due to its softness. In men, fractures are observed three times more often than in women. Fracture of the patella is usually transverse, the fracture line generally running from above and outwards downwards and inwards; a longitudinal fracture is described as a great rarity; a fracture of the patella occurs no higher than the middle of its height, usually below it; the lower fragment may in turn break into several pieces—in this case, the fracture line will be stellate. All this depends on the mechanism of injury—direct trauma to the patella or indirect, the so-called avulsion fracture of the patella. Fractures of the patella are divided into complete, through the entire thickness of the patella, and incomplete; an incomplete fracture of the patella may manifest as a bone crack without displacement of the fragments; bone fragments may lie freely in the joint (Volkovich). In a fracture of the patella, the fragments diverge differently due to the pull of the quadriceps muscle: with a small rupture of the extensor tendon of the leg, the separation of the patellar fragments will be insignificant, otherwise the fragments will diverge far—up to 15 cm or more. The fracture lines of the patella and the rupture of the leg extensor tendon usually do not coincide, the latter passing higher, which creates a flap of soft tissues that can interpose between the patella fragments and thereby become an insurmountable obstacle (without blood intervention) to the fusion of the fragments. In a fracture of the patella, the synovial membrane of the joint ruptures and causes significant hemorrhage into the joint; the joint increases in volume, and the patellar fragments under the influence of increased intra-articular pressure diverge even more and rotate forward along the fracture line; blood poured into the joint penetrates into the soft tissues of the thigh upon rupture of the upper pouch of the joint capsule, and upon rupture of the prepatellar bursae, it fills them as well, producing the picture of prepatellar bursitis. Upon palpation of the knee, a transverse depression is found on the anterior surface of the patella, and a difference in height between the injured and healthy patella compared to the healthy knee, with the former standing higher; fracture of the patella can be determined by the crepitus of fragments rubbing against each other; in the case of significant fragment separation, a transverse groove is visible to the naked eye on the anterior surface of the knee, at the bottom of which the femoral condyles can be palpated directly under the skin; easy displaceability of the fragments, especially the upper one, completes the clinical picture of a patella fracture. In general, the picture of a patella fracture is in most cases so clear that radiography can only confirm what has been elucidated by conventional methods of examination. Immediately after a patella fracture, some patients can still get up and take a few steps with difficulty, while extension of the leg at the knee is difficult with freer flexion; at the same time, the ability to raise the leg at the hip joint is impaired (Volkovich); the knee is held slightly bent; the leg extensor is significantly weakened during a patella fracture, which manifests in a standing patient as an unexpected buckling of the leg at the knee. Prognosis in a patella fracture depends on the following moments: 1) to what extent the quadriceps muscle has retained its strength and whether advanced atrophy has set in; 2) how much time has elapsed since the fracture: the shorter it is, the greater the chances of success; 3) what is the degree of fragment separation: the smaller it is, the more grounds to expect a good outcome of treatment; 4) whether there are complications in the fracture of the patella, concomitant damage to the soft parts of the joint, large hemorrhage into the joint, interposition of soft tissues between the fragments, etc.; 5) whether treatment has been carried out correctly and systematically.

Fig. 1

Figure 2.

Figure 3.

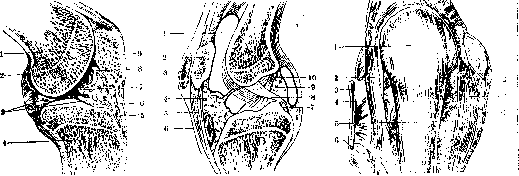

Fig. 1. Right knee joint (sagittal section): 1 - lateral condyle of femur; 2 - articular capsule; 3 - lateral meniscus; 4 - lateral condyle of tibia; 5 - deep infrapatellar bursa; 6 - patellar ligament; 7 - alar fold; 8 - articular cavity; 9 - patella.

Figure 2. Sagittal section of the knee joint: 1 - suprapatellar bursa; 2 - patella; 3 - subcutaneous prepatellar bursa; 4 - anterior fat pad of the joint capsule; 5 - patellar ligament; 6 - deep infrapatellar bursa; 7 - medial tubercle of the intercondylar eminence; 8 - posterior cruciate ligament; 9 - posterior fat pad of the joint capsule; 10 - anterior cruciate ligament.

Figure 3. Knee joint from the front: 1 - patella; 2 - lateral patellar retinaculum; 3 - biceps femoris muscle; 4 - fibular collateral ligament; 5 - patellar ligament; 6 - head of fibula ligament; 7 - tibial collateral ligament; 8 - medial patellar retinaculum; 9 - articular capsule.

tinaculum patellae med.; 9- capsula articularis.

j likely due to its softness. In men, fractures are observed three times more often than in women. Fracture of the patella is usually transverse, the fracture line usually goes from above outwards downwards inwards; as a great rarity, a longitudinal fracture is described; the fracture of the patella falls no higher than the middle of its height, usually below it; the lower fragment can in turn break into several parts—in this case the fracture line will be stellate. All this depends on the mechanism

Figure 4.

Figure 5.

Figure 6.

Figure 4. Bursae of the patella: 1 - iliotibial tract (Maissiat); 2 - subcutaneous prepatellar bursa; 3 - subcutaneous infrapatellar bursa; 4 - subcutaneous bursa of the tibial tuberosity. Figure 5. Ligaments of the patella: 1 - patellar ligament; 2 - lateral patellar retinaculum; 3 - iliotibial tract; 4 - tibial tuberosity; 5 - tendon of sartorius muscle; 6 and 7 - medial patellar retinaculum; 8 - vastus medialis muscle. Fig. 6. Ligaments and bursae of the patella: 1 - patella; 2 - patellar ligament; 3 - proper bursa of sartorius muscle; 4 - cut sartorius muscle; 5 - pes anserinus bursa; 6 - attachment of gracilis and semitendinosus muscles; 7 - medial meniscus; 8 - medial patellar retinaculum.

i of injury—direct trauma to the patella or indirect, the so-called avulsion fracture of the patella. Fractures of the patella are divided into complete, through the entire thickness of the patella, and incomplete; an incomplete fracture of the patella can be expressed in a bone crack without divergence of fragments; fragments of the patella can lie freely in the joint (Volkovich). In a fracture of the patella, the fragments diverge differently due to the pull of the quadriceps muscle: with a small rupture of the extensor tendon of the leg, the divergence of the patellar fragments will be insignificant, otherwise the fragments will diverge far—up to 15 cm or more. The fracture lines of the patella and the rupture of the leg extensor tendon usually do not coincide, the latter passing higher, which creates a flap of soft tissues that can interpose between the patella fragments and thereby become an insurmountable (without bloody intervention) obstacle to the fusion of the fragments. In a fracture of the patella, the synovial membrane of the joint ruptures and gives significant hemorrhage into the joint; the joint increases in volume, and the fragments of the patella under the influence of increased intra-articular pressure diverge even more and rotate forward along the fracture line; the blood poured into the joint, upon rupture of the upper pouch of the joint capsule, penetrates into the soft tissues of the thigh, and upon rupture of the prepatellar bursae, fills them as well and gives the picture of prepatellar bursitis. Upon palpating the knee, one finds a transverse fossa on the anterior surface of the patella and, compared to the healthy knee, a difference in the height of the damaged and healthy patella, the former standing higher; fracture of the patella can be determined by the crepitus of fragments rubbing against each other; in the case of significant divergence of fragments, a transverse groove is noticeable to the eye on the anterior surface of the knee, at the bottom of which the femoral condyles can be directly palpated under the skin; easy displaceability of the fragments, especially the upper one, completes the clinical picture of a patella fracture. In general, the picture of a patella fracture is in most cases so clear that radiography can only confirm what has been clarified by conventional methods of examination.—Immediately after a patella fracture, some patients can still get up and take a few steps with difficulty, while extension of the leg at the knee is difficult with freer flexion; at the same time, the ability to lift the leg in the hip joint is impaired (Volkovich); the knee is held somewhat bent; the leg extensor in a patella fracture is significantly weakened, which is expressed in a standing patient by an unexpected buckling of the leg at the knee.—The prognosis in a patella fracture depends on the following moments: 1) how much the quadriceps muscle has preserved its strength and whether advanced atrophy has set in; 2) how great the period is elapsed from the fracture: the smaller it is, the more chances of success; 3) what is the degree of divergence of fragments: the smaller it is, the more grounds to expect a good outcome of treatment; 4) whether there are complications in the fracture of the patella, concomitant damage to the soft parts of the joint, large hemorrhage into the joint, interposition of soft tissues between the fragments, etc.; 5) whether treatment has been carried out correctly and systematically.

Methods of treating patellar fractures fall into conservative and operative categories, depending on the nature of the fracture and the injury to the tendon of the rectus femoris muscle. If the latter is not ruptured and the separation of the patellar fragments is insignificant, a conservative method of treatment can be applied. In the period immediately following the fracture, it is necessary to straighten the leg at the knee and ensure the elimination of hemorrhage in the joint, for which rest and a pressure bandage on the joint are used; if the blood is not absorbed within about half a month, joint puncture is indicated for the purpose of extracting the blood; it is never possible to remove all the blood due to its clotting, but it is sufficient to remove a significant portion of the blood and thereby relieve the joint capsule from the high intra-articular pressure that is harmful to it. Rest must not be prolonged; after only 2-3 days, massage of the muscular apparatus is initiated, and in 2-3 weeks, one transitions to active and passive movements of the knee joint, striving to get the patient back on their feet. Volkovich recommends using a supporting cardboard-plaster splint to maintain the function of the extremity and its nutrition; this splint is positioned as a strip 3-4 fingers wide along the posterior surface of the leg from the upper third of the thigh to the lower third of the lower leg; the splint is placed over a carefully applied lining bandage; the leg is given a slightly bent position at the same time. Great success should not be expected from variously applied gauze or adhesive plaster bandages (most often in a figure-eight shape), except perhaps with a very insignificant separation

Figure 7.

Figure 8.

Figure 7. Passing of the threads when suturing the patella. Figure 8. U-shaped suture of the patella. of the patella fragments. - The second group of methods for prolonged approximation of the fragments involves the use of instruments; such instruments include Malgaigne's clamp; the points of the clamp are driven through the skin into the patella fragments, which are then approximated by turning the clamp screw; now hardly anyone uses this method, since without opening the joint it is almost impossible to achieve complete approximation of the fragments, if only due to the possibility of soft tissue interposition between the fragments. With a simultaneous rupture

Figure 9.

Figure 10.

Figure 11.

Figure 9. Tying of the threads. The fragments are held by blunt hooks. Figures 10 and 11. Peripatellar suturing with wire and tying it. of the quadriceps tendon and significant separation of the patella fragments, treatment can only be surgical, especially since it is immeasurably easier to approximate and unite the fragments by operative means. The operation of suturing the patella is performed through an incision that opens access to both fragments, crafting a flap with the base pointing downward so that the skin scar is removed from those parts of the knee that touch the floor when kneeling, and does not coincide with the line of the fracture and sutures of the patella and ligamentous apparatus; after opening the joint, blood clots are removed and soft tissues trapped between the fragments are freed; two holes are drilled in both fragments if the threads are to be passed through the thickness of the patella; the fragments are approximated with various instruments (bullet forceps, blunt hooks placed behind the upper edge of the upper fragment and the lower edge of the lower fragment), sutures of thick silk or bronze-aluminum wire are passed; the sutures are tied with obligatory instrumental approximation and retention of the fragments, otherwise, when trying to approximate the fragments by tightening with the sutures, the latter may break or cut through the holes in the patella (Figures 7-12). Catgut sutures are applied to the ruptured parts of the joint capsule and ligamentous apparatus on the sides and on the anterior surface of the patella. Skin suture. Plaster splint bandage on the posterior surface of the leg, as described above; after 15 days, cautious active and passive movements; light massage of the thigh. The best method of suturing the patella must be recognized as suturing by applying a peripatellar suture, since in this case there is no need to make holes in the bone and subject it to the risk of an additional fracture when making the holes. In chronic patellar fractures with a large separation of fragments, it is impossible to approximate them without special techniques that facilitate the approximation of the fragments - plastic lengthening of the quadriceps tendon or partial tenotomy of the patellar ligament. The entire operation of suturing the patella must proceed under very strict asepsis. The results of blood treatment for patellar fractures speak in favor of this

on the patella. Active methods of treatment yielded a 1% mortality rate and almost as many recurrences; conservative methods yielded a 3% mortality rate and about 15% recurrences (Sozon-Yaroshevich). Dislocations of the patella (luxatio patellae) belong to the category of rare injuries (0.6–0.7%). Displacement of the patella is observed mainly outward (luxatio patellae externa); the cause of such a dislocation is either external direct violence or muscular pull; the patella in this case protrudes outward from the lateral condyle of the femur and faces its posterior surface toward the femur; the joint capsule in this dislocation ruptures, hemorrhage into the joint and its swelling occur; the functional disorder of the knee is significant, the knee is in a position of genu valgum and slightly flexed. The prognosis in fresh cases is favorable. Treatment consists of reduction of the patella, easily accomplished by flexing the leg at the hip joint to relax the quadriceps muscle, extending the knee, and pressure on the kneecap; sometimes anesthesia is required. For several days (no more than 8–10), the leg is placed in a splint, and then massage, active and passive movements in the knee are initiated. - Inward dislocation of the patella (luxatio patellae interna) is a great rarity. A further degree of displacement of the patella is its position with a raised edge, a position on the ridge, which is placed between the condyles of the femur, while the surfaces of the patella face sideways. Such a dislocation is called vertical (luxatio patellae verticalis); the patellar ligament is twisted; the leg is sometimes extended, sometimes flexed; complete functional disorder is noted. Reducing the patella is not easy, and sometimes it is necessary to resort to open reduction via arthrotomy. With an even greater rotation, the patella turns to face forward with its posterior surface; this is a rotational dislocation of the patella (luxatio patellae rotatoria). Such a dislocation results from very great violence and probably a longer patellar ligament than usual. The joint capsule in this case ruptures on both sides of the patella with significant hemorrhage into the joint. The function of the joint is completely disrupted. Reduction presents the usual difficulties of reducing a dislocated patella. - The rarest dislocation is horizontal (luxatio patellae horizontalis). The patella lies in a transverse position, with its articular surface facing downward toward the tibia or upward toward the femur, positioned in the joint space. The cause is significant direct violence; simultaneously, the integrity of the integuments, ligamentous apparatus, joint capsule, etc., may be compromised. Upon palpation of the joint, the patella is not in its usual place, but a transverse bony ridge, the edge of the patella, protrudes from the joint space. Reduction of such a patella dislocation is performed under anesthesia; if conservative reduction fails, one has to resort to the open method. In all cases of patella dislocation, radiographs make it possible to more accurately diagnose both the position of the patella itself and possible concomitant joint injuries. Habitual dislocations of the patella (luxatio patellae habitualis) are recurrent dislocations in cases where good restoration of the integrity of the damaged tissues did not occur during the first dislocation, or in individuals with weak musculature and a valgus knee. Dislocation occurs very easily, it is only necessary to bend the leg at the knee or simply push the patella with the hand. These dislocations are just as easily reduced. (For surgical methods of patella fixation, see Knee joint.) In the surgical treatment of habitual dislocation, which consists of transferring the tibial tuberosity 1.5–2 cm inward and fixing the transferred bone in a new place with a nail or a careful periosteal suture, it is necessary to take into account the possibility of an even greater disruption of leg function in the knee in case of failure, i.e., in the case of poor fusion of the transferred tibial tuberosity: at the very first strong extension of the leg in the knee, during a jump, etc., the tibial tuberosity is torn off its new place, and the patella moves high upward; atrophy of the quadriceps muscle sets in due to the absence of the attachment of its lower tendon. In exceptionally stubborn cases of habitual dislocation of the patella with a sharply expressed genu valgum, supracondylar osteotomy of the femur is proposed (Broca and Monod). Primary, isolated lesions of the patella. Infectious osteomyelitis of the patella (osteomyelitis patellae infectiosa) is a rare (2%; Creite) disease, expressed in the development of a suppuration focus in the anterior section of the bone, with a stormy course; in this case, pus usually breaks outward anteriorly or along the course of the quadriceps tendon into the soft parts of the thigh. The knee joint may be involved in the process secondarily. The process sometimes ends with a central sequestrum and a fistula (Creite). In the absence of knee involvement, the picture of a lesion of the anterior section of the knee emerges: severe general condition, young age, stormy onset, median position of the focus of greatest painfulness; on the X-ray in acute cases, only an unclear pattern of bone structure. In the absence of a rupture of the inflammatory process into the joint, the prognosis is favorable. Treatment reduces to opening the focus and careful removal of the affected area with a sharp spoon, so as not to open the joint cavity. The wound can be sutured tightly. Rest. In chronic osteomyelitis, it is better to remove the entire bone. - Tuberculosis of the patella (tuberculosis patellae) is even rarer (0.1%, Tikhov). Women are affected more often; no age predisposition is noted; tuberculosis of the patella manifests in two forms: periosteal and osteomyelitic (central). The first form is rarer; the process is usually localized in the anterior section of the patella, with the periosteum thickened, forming a cold abscess; upon rupture into the joint, secondary gonitis occurs. The osteomyelitic form of patella tuberculosis is observed more frequently; the process nests in the deep posterior parts of the patella; from here pus can penetrate into the joint or forward to the external integuments; the bone is usually destroyed; on the X-ray: the bone is rarefied (rarefying ostitis) or the picture of a cavity with uneven contours in the case of the formation of fungous masses, or finally, typical tuberculous sequestra. The clinical picture of patella tuberculosis has no sharp features; the most constant sign is fistulas, then a swelling of the anterior part of the joint, while its lateral and posterior sections are normal. The integuments in front are tense, shiny, or ulcerated. Joint movements are not severely impaired. The prognosis in an isolated tuberculous lesion of the patella is favorable until the process has spread to the knee joint. The best method of treatment must be recognized as the complete removal of the patella, especially since such an intervention relatively little impairs the function of the extensor apparatus of the leg. - Isolated syphilitic lesion of the patella (lues patellae) is not frequent; the process manifests in gummous destruction of the bone. Diagnosis is based on anamnestic data, the Wassermann reaction, and fluoroscopy: the femur and tibia are healthy, the contours of the patella are blurred, especially the upper one, the entire bone is rarefied, and its rarefied areas appear as numerous small foci (Kitayevsky, Tikhonov). The clinical picture of syphilis of the patella reduces to signs of bone lues; sometimes it is clearly expressed, and sometimes it becomes clear only after prolonged observation. Treatment is specific; in the presence of extensive destruction, surgical methods are indicated. Tumors of the patella. Benign tumors of the patella are very rare; among them are fibroma, developing from the anterior surface of the patella, osteoma, and chondroma. Osteoma usually develops on the anterior surface of the patella; some authors consider inflammatory processes to be the etiological moment of osteoma formation, thereby classifying osteoma as hyperostoses, periostitis; cases of undoubted bone tumors are also known (Bull). Accurate diagnosis is based mainly on X-rays. Treatment is surgical—chipping off the tumor. Malignant tumors of the patella, sarcomas, are more common. The clinical picture of patella sarcoma is uncharacteristic; a small tumor can be confused with knee tuberculosis; at large sizes, it is difficult to settle on a diagnosis of sarcoma of the patella alone, and this is of no significant practical interest, since the prognosis for sarcoma of the patella alone or the entire knee is equally dismal, and treatment will differ initially only quantitatively in terms of the breadth of the tissues removed. The patella is removed along with the surrounding tissues, or the operation immediately consists of amputation of the thigh, depending on the general condition of the patient.
